In this section you’ll find all interesting things around our several vehicles (with or without motor).
Warum werden immer mehr Autos mit Turbo-Aufladung hergestellt ? Was ist die Funktion eines Turbo-Laders ? Worauf muss ich achten wenn ich ein Auto mit Turbo -Lader fahre ?
Diese und weitere Fragen werden über den folgenden Artikel aus der Auto-Zeitung beantwortet:click here to continue...
Nice view from the backside left on a Moto-Guzzi Le Mans 1000 - the better half:click here to continue...
So so, how about asking the pilots not the researchers ??
Nevertheless interesting report:click here to continue...
Drawing / study of the beautiful Ducati Desmo "Königswellen" engine. The engine was initially only roughly sketched in outline, although essential details such as the "Königswellen" should be recognizable.
Based on this, the painting was created for the same object, which can be found here.
click here to continue...
Mass Airflow Sensor Troubleshooting and Replacement Time/Tab/Talent: about 1 hour / € 300/ Medium (++)
Note: Try cleaning the unit first
Special Tools : Tamper-proof T20 Torx driver
Performance Gain: Smoother-running engine
Applicable Years: All
The mass airflow sensor (MAF) is located inside the engine compartment and is used to measure the amount and temperature of air that is entering the engine at any one time.
Older-style meters used on fuel injection systems in the 1980s measured air volumetric flow, which worked fine. But then you also needed a separate sensor to figure out how cold or dense the air was. The mass airflow sensor senses the total amount of air passing the sensor and allows the fuel injection system to adjust the fuel mixture to compensate for cold weather and/or high altitude conditions.
The MAF also incorporates an internal intake air temperature sensor that measures the temperature of the intake air.
The first indication that you might have a problem with the MAF is the presence of check engine light(CEL) on your dashboard, the check engine lamp can be caused by a wide variety of problems with the engine.
You need to read the codes fiom the computer to get a starting clue as to what the problem is .
It perfectly safe to continue to drive the car while the CEL is on, as long as it is not flashing.
However, the engine will not be operating at peak efficiency, and you will most likely experience a loss in power and a decrease in gas mileage as a result.
It's best to get the problem taken care of relatively quickly, as running the engine in this condition can potentially cause damage to other components, such as the catalytic converters.
The computer will know if something is wrong with the MAF because it will compare the values being output by the sensor with "expected" values that it should be receiving. This commonsense check by the computer helps diagnose problems wirh every component in the system.
If the MAF becomes dirty and is falsely indicating to the engine that the car is receiving very little air while at full throttle, then the computer will most likely kick back an error code.
To gain more infor'mation about the problem, you can try disconnecting the sensor completely and take the car for a drive. If you take short drives (30 minutes or less) with the sensof disconnected, it shouldn't cause any major damage to your car. The engine managetment system (DME) will enter into a type of "limp mode" that will compensate for the missing MAF. If engine performance improves dramatically when disconnecting the MAF, then the problem quite likely lies with the MAF.
Vacuum leaks and other air leaks in the system can cause MAF sensor errors.
If you have a crack or leak in your air intake downstream of the sensor, then the MAF will be sensing less air than the engine is actually receiving. If the clamp on the throttle body happens to come loose and fall off, then the MAF will indicate almost no air being sucked through the intake, yet the engine will be sucking air directly from the engine compartment into the throttle body. The bottom line is that you should carefully inspect all of your hoses, clamps, and intake tubes for air leaks prior to replacing the sensor.
The MAF is located on the left side of the engine compartment, just behind the air filter.

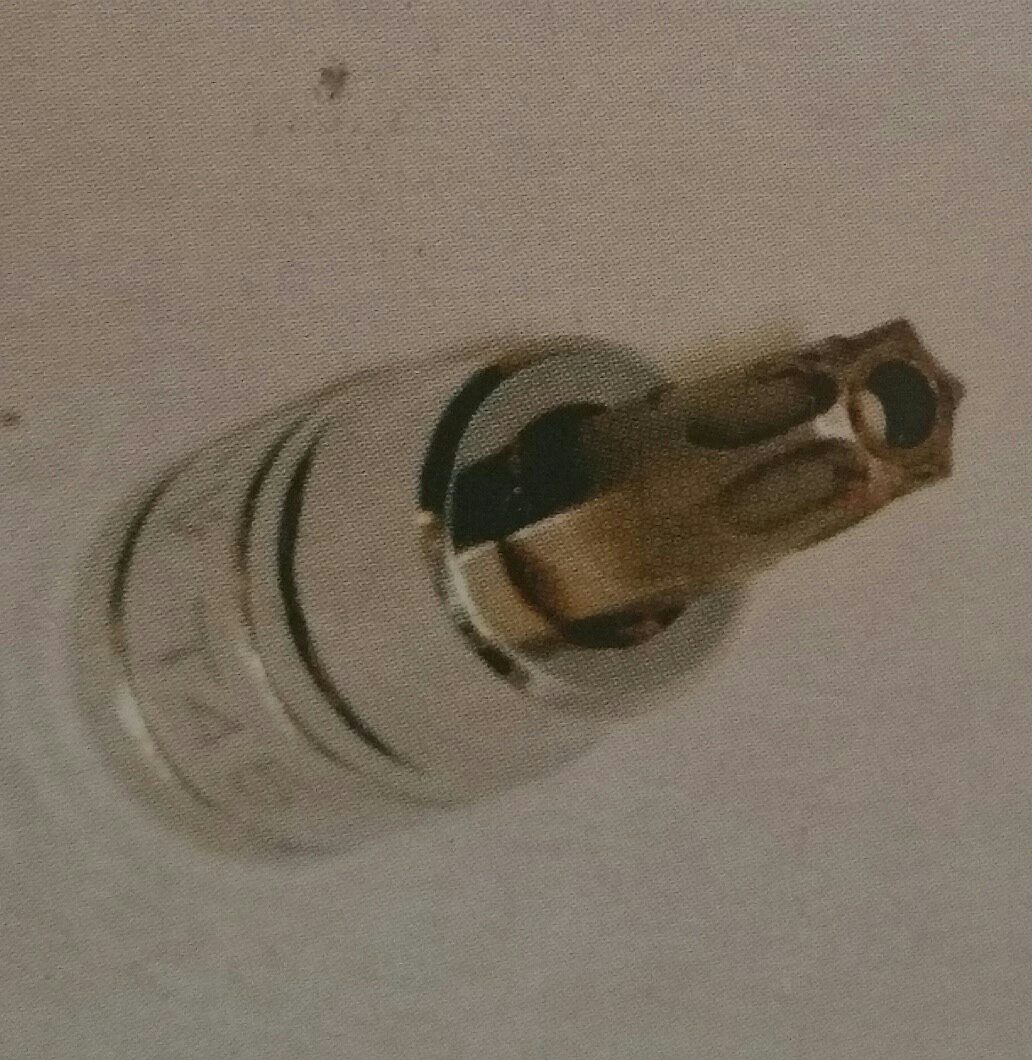

For some reason, Porsche made it unusually difficult to remove the MAF by securing it with a T20 tamper-proof Torx screw.
You need the special tamper-proof Torx drivers, which are not typically found in everyone toolbox, but usually can be purchased at a good local auto parts store.

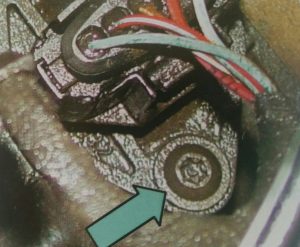

Although the holes on the MAF look symmetrical, they are not, and the unit can only be installed in one direction. See Photo for a close-up of the MAF. Removal is easy once you have the tool.
Simply remove both screws holding it in place and pull it out. Boxsters from 2005 and later have a MAF with an integrated housing-- simply unclamp the housing kom the intake tube and remove it.
It is very important to keep the sensor clean. If the air cleaner isn't working too well, it could allow dust and debris to collect on the MAF.
If you've had a problem with your air-oil separator it may have contaminated the sensor as well.
Oil sucked into the engine intake from a defective separator can easily find its way back to the imake tube. If you have had major engine problems (like a blown-up engine), then you may find a ruined MAF. If you have an aftermarket reusable air filter, beware of how much cleaning and filtering oil you use on it. Excess oil may get sucked into the intake and find its way onto the MAF. To keep your MAF healthy, I recommend changing or cleaning your air filter often.
If you are replacing your sensor it is extremely important that you get the proper one for your car. There are two basic types, one for the cars that use a traditional throttle cable (up to 1999) and one for cars with an E-gas electronic throttle (2000 and later}. In addition the later- style E-gas sensor has been updated at least twice as of this writing. Porsche updated the sensors in the Boxster in mid- 2000 and also released a new version of the DME software that is a required update, if you are going to use this new and improved sensor (see Porsche Tech Bulletin Boxster 1a/00 2445).
Below is a chart that shows the differences between all of the sensors:
|Porsche Part #||BOSCH Part #||Application||Notes|
|996.606.123.00||0-280-217-007||1997-1999 All Boxsters||Sensor for use with cable throttle cars|
|996.606.124.00||0-280-218-009||Early 2000 Boxster/Boxster S|| Original sensor for E-gas cars
(thru Boxster 2.7L Chassis #98 6YS 620414 and #98 0YU 625099}
(thru Boxster S 3.2L Chassis #98 0YS 660257 and #98 3YU 662413)
|996.606.125.00||0-261-231-148||Mid-2000-2004 Boxster/Boxster S||First updated sensor for E-gas cars (discontinued and replaced with version 125.01 below)|
|986.606.125.01||0-280-218-055||Mid 2000-2004 Boxster/ Boxster S||Latest updated sensor|
|987.606.125.00||0-280-218-145||2005-All Boxster/Cayman||Integrated housing design|
If you own a 2000 Boxster or 2000 Boxster S, then you need to make sure that you have the proper sensor installed. Much confusion lies in the fact that most people don't know if their car has been updated by Porsche or not. If the old sensor that you removed is 996.606.124.00, then you need ro replace it with the same part number (or have Porsche update your DME software to accommodate the newer-style sensor -- see Technical Service Bulletin 1/00 2445 Air Flow Sensor, dated 4-18-00}. If the old sensor you're removing ends in 125.00 or 125.01, then replace it with 986.606.125.01 (the latest version available).
After reinstallation, reset your CEL using your code reader.
You can also disconnect the battery for a short while to reset the lamp, but I don't really recommend this approach.
On 1997-2002 Boxsters, you can disconnect the battery for more than 20 seconds, but less than 50 seconds, to clear the trouble codes without having to enter your code back into your radio.
On pre- 2003 cars, the computer's CEL memory, is cleared after being disconnected for 20 seconds, but the radio code is needed after 50 seconds disconnected.
After you have replaced or cleaned the sensor and cleared the code, you need to go drive the car and see if the code returns. If the same error code appears, then the problem probably lies elsewhere. Most of the time when you have an error code indicating a problem with the mass airflow sensor, it is usually solved by the installation of a new sensor. However the computer can become confused sometimes and give misleading error messages. Wire harness issues, DME problems, and secondary air injection equipment problems may all give false MAF error codes. At this point it is best to dive into the factory manuals and start going through the laborious test procedures contained in there.click here to continue...
Specifications Ford Mustang I Coupé
V8 cylinder, longitudinally mounted
2-valve, lower camshaft, chain drive;
Mixture formation: falling flow double gasifier
Bore x stroke: 101.6 × 72.9 mm;
Cubic capacity: 4736cc; Compression: 9.3;
Power: 147 kw / 200 hp at 4400 rpm
max. Torque. : 382 Nm at 2400 rpm;
Three-speed automatic transmission;
CONSTRUCTION / CHASSIS
Self-supporting steel body with two doors;
Front suspension: double crossbars, coil springs,
rear: rigid axle, leaf springs;
v / h. Telescopic shock absorbers;
Brakes: v / h. Drums (discs on request);
Tire: 205/170 R 14
MEASUREMENTS: 4613/ 1730/ 1308mm
Wheelbase: 2745 mm;
Empty weight: 1326 kg
Tank capacity: 61l
Construction period: 1964 to 1966;
Number of pieces Mustang I: 1,288,557
Price (1969): 8,600 $
Acceleration: 0 to 100 km/h in about 9.0 S
Top speed. : 177 km / h;
Consumption 14,0 l / 100 km
Good looking showcar
Bulky V8 engine
Technology very robust, good spare parts supply,
High consumption, very prone to rust, Brakes
MARKET SITUATION 08-2017
Condition 2: 21. 000 $
Condition 3: 14,500 $
Condition 4: 7200 €
Performance slightly rising
Toyota MR2 W2
Hubraum: 1998 cm
Leistung: 129 kw/175 PS bei 7000/min;
maximales Drehmoment: 186 Nm bei 4800/min
Selbsttragende Stahlkarosserie mit zwei Türen;
Radaufhängung vorn: Mcpherson-
Bremsen: V./h. Scheiben
Reifen: 205/160 R14
ECKDATEN UB/H: 4180/1700/1240 mm;
Radstand: 2400 mm
Leergewicht: 1260 kg
Bauzeit: 1989 bis 1999;
Preis(1994): 55.170 Mark
Beschleunigung: 0 auf 100 km/h in 8,3 S;
Höchstgeschwindigkeit: 225 km/h; Verbrauch: 10,91/100 km
ZUSTAND 2: 7400 €
ZUSTAND 3: 4500 €
ZUSTAND 4: 2700 €
Wertentwicklung: leicht steigend (Toyota MR2(w2)Bj. 1990 bis 1994)
Tolle Fahreigenschafien, niedriger Preis. Der MR2 ist ein verkannter Sportwagen mit Exotenstatus.
Elektronik und Ölprobleme machen dem Youngtimer zu schaffen, dem außerdem das Image fehlt.
IMSA WeatherTech Sportscar Championship, 9th race in Danville / USA
With two new 911 RSRs, the Porsche GT Team will compete on the Virginia International Raceway on August 27th at the ninth season of the IMSA Sportscar Championship.
The 510 bhp race car, which competed against strong competitors in the highly competitive class GTLM, was completely redesigned by Porsche Motorsport in Weissach on the basis of the high-performance sports car 911 GT3 RS for this season. On July 22nd he celebrated his first victory in Lime Rock. Strongly represented on the 5.263-kilometer-long tradition track near Danville in the US state of Virginia are also Porsche customer teams with a total of four 911 GT3 R in the class GTD. As in Lime Rock, the prototypes are also missing in this third-last season race, so the overall winner will definitely be a GT vehicle for the second time this season.
The Times </ h3>
The race on the Virginia International Raceway starts on Sunday, August 27th, at 1:35 pm local time (3:35 pm CEST) and lasts 2:40 hours. Outside the US, it is broadcast live on www.imsa.com .click here to continue...
